Standard MANOSKOP® 721 Quick 40-200Nm Torque Wrench with permanently integrated ratchet

Product Code: 50204020

Stahlwille 721 QUICK mechanical torque wrenches are a guarantee of the highest quality. Unique design eliminates the need for unloading after use! Available in various models with torque ranges from 5 up to 300 Nm.

1365.30
1365.30
opak
Order via phone: +48 514 864 688 Leave your phone
Shipping within : 24 hours
Shipping price :
0
  • Fedex 0
  • inPost (courier) 0
  • DPD 0
  • DHL 0
  • inPost ( parcel locker) 0

Stahlwille 721 QUICK torque wrenches feature unique mechanism that eliminates the need to
unload the tool after use. As a result, the wrench can remain set to the desired torque value without
affecting its accuracy or lifespan.


Build from premium-grade materials, they deliver exceptional precision, reliability and durability—even
under the most demanding conditions.


The 721 QUICK wrenches are equipped with permanently mounted ratchets.
The 721 QUICK series wrenches feature a torque-setting mechanism operated by a slider released by a lock-button located at the end of the handle.Each wrench is supplied with a calibration certificate and a durable plastic carrying/storage case.


Key advantages of the 721 QUICK torque wrenches:

  • No unloading required after use, thanks to the unique wrench design
  • Manufactured from the highest-quality materials
  • Distinctive, clearly perceptible and loud "click"
  • Very high accuracy - +/-4%
  • Outstanding long-term durability

The wrench mechanism also incorporates separate adjustment screws for the lower and upper torque
ranges, greatly simplifying fine-tuning during routine calibration.
Models are available from 4 Nm up to 1000 Nm.

Parameters :
Drive size:
1/2"
Torque range [N·m]:
40-200 N·m

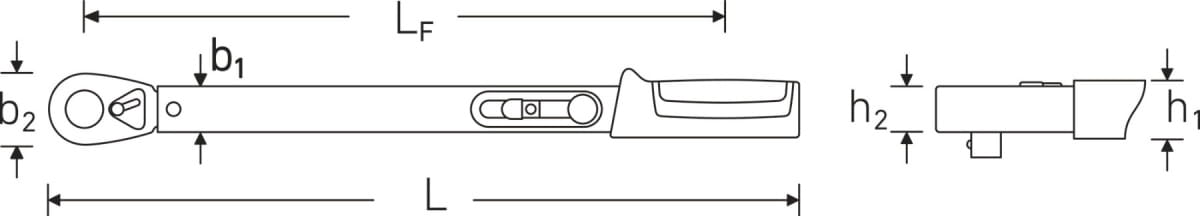

Length:
483 mm
Dimension B1:
28 mm
Dimension B2:
41 mm
Dimension H1:
23 mm
Dimension H2:
18 mm
Dimension Lf:
418 mm
Ratchet teeth:
36
Weight:
1.35 kg
