Torque wrench 200-1000 Nm MANOSKOP® 730N/100 - without ratchet head and with ends adaptor 22x28 mm

Product Code: 50181100

Stahlwille 730N mechanical torque wrenches are a guarantee of the highest quality. Unique design eliminates the need for unloading after use! Available in various models with torque ranges from 4 up to 1000 Nm.

4907.70
4907.70
opak
Order via phone: +48 514 864 688 Leave your phone
Shipping within : 24 hours
Shipping price :
0
  • Fedex 0
  • inPost (courier) 0
  • DPD 0
  • DHL 0
  • inPost ( parcel locker) 0

Stahlwille 730N torque wrenches feature unique mechanism that eliminates the need to unload the
tool after use. As a result, the wrench can remain set to the desired torque value without affecting its
accuracy or lifespan.


Build from premium-grade materials, they deliver exceptional precision, reliability and durability—even
under the most demanding conditions.


End fitting adapters allow for use of all available on the market open or ring-type end fittings, with
adapters 9x12 mm, 14x18 mm, or 22x28 mm - depending on the torque range of the given wrench.


The 730N series is equipped with a convenient end-cap adjustment dial, allowing for quick, easy and
very accurate torque setting.


Each wrench is supplied with a calibration certificate and a durable plastic carrying/storage case.


Key advantages of the 730N series:

  • No unloading required after use, thanks to the unique wrench design
  • Manufactured from the highest-quality materials
  • Distinctive, clearly perceptible and loud "click"
  • Very high accuracy - +/-3%
  • Outstanding long-term durability

The wrench mechanism also incorporates separate adjustment screws for the lower and upper torque
ranges, greatly simplifying fine-tuning during routine calibration.
Models are available from 4 Nm up to 1000 Nm.

Parameters :
Adapter size:
22x28 mm
Torque range [N·m]:
200-1000 N·m
Tolerance:
±3%
Model:
730N/100

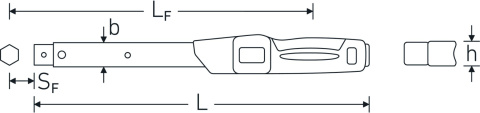

Dimension B:
30.6 mm
Dimension H:
25.6 mm
Dimension L:
1363 mm
Dimension Lf:
1352 mm
Dimension SF:
55 mm
Scale increment:
5 N·m
Weight:
5 kg
