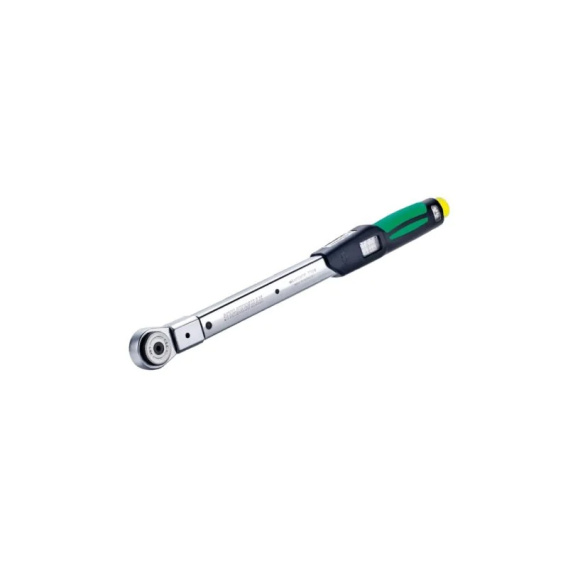

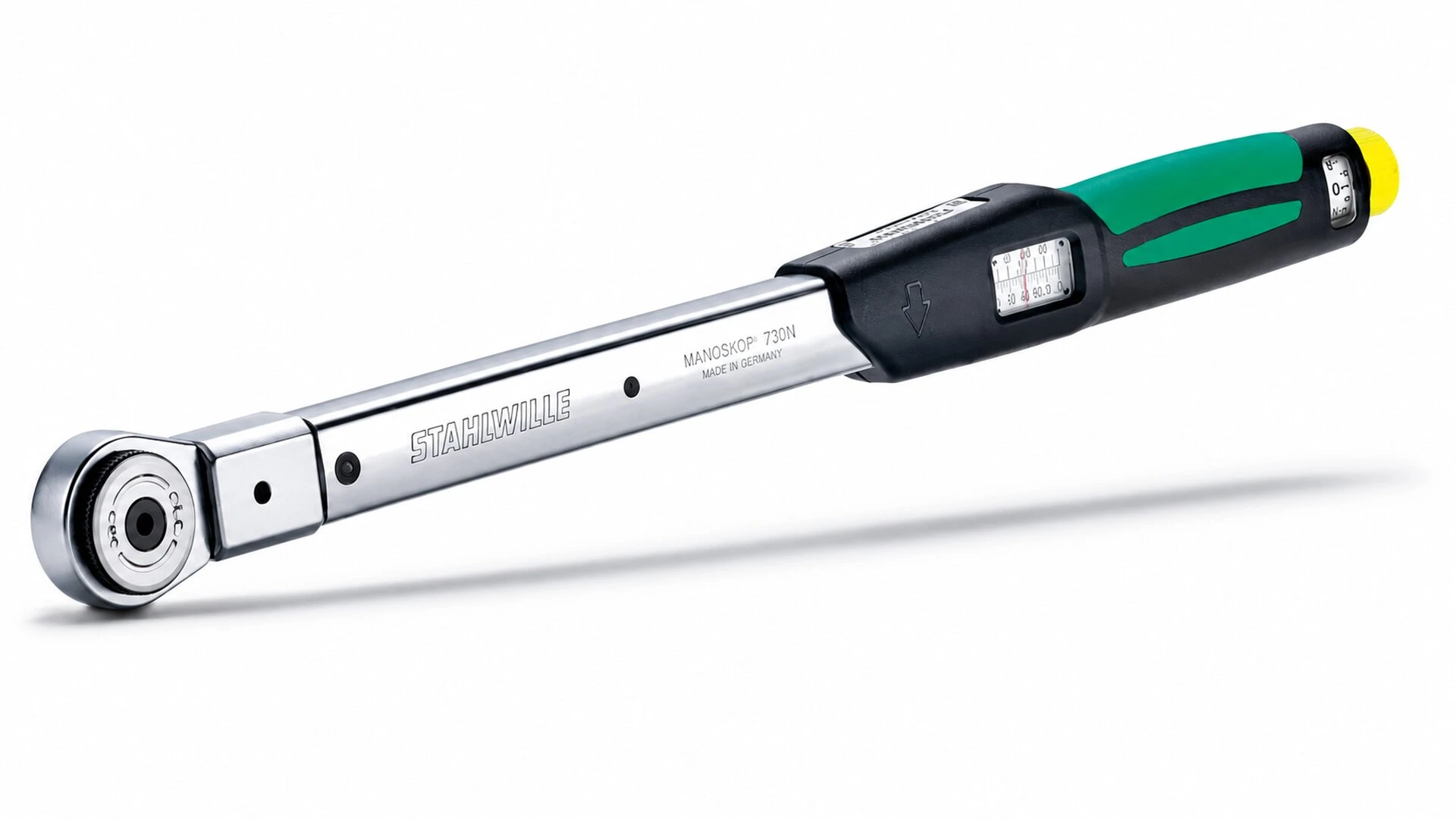

Torque wrench 130-650 N·m MANOSKOP® 730 Fix/65 with ratchet head 3/4" and adaptor for insert tools 14x18 mm

Technologies and User Properties

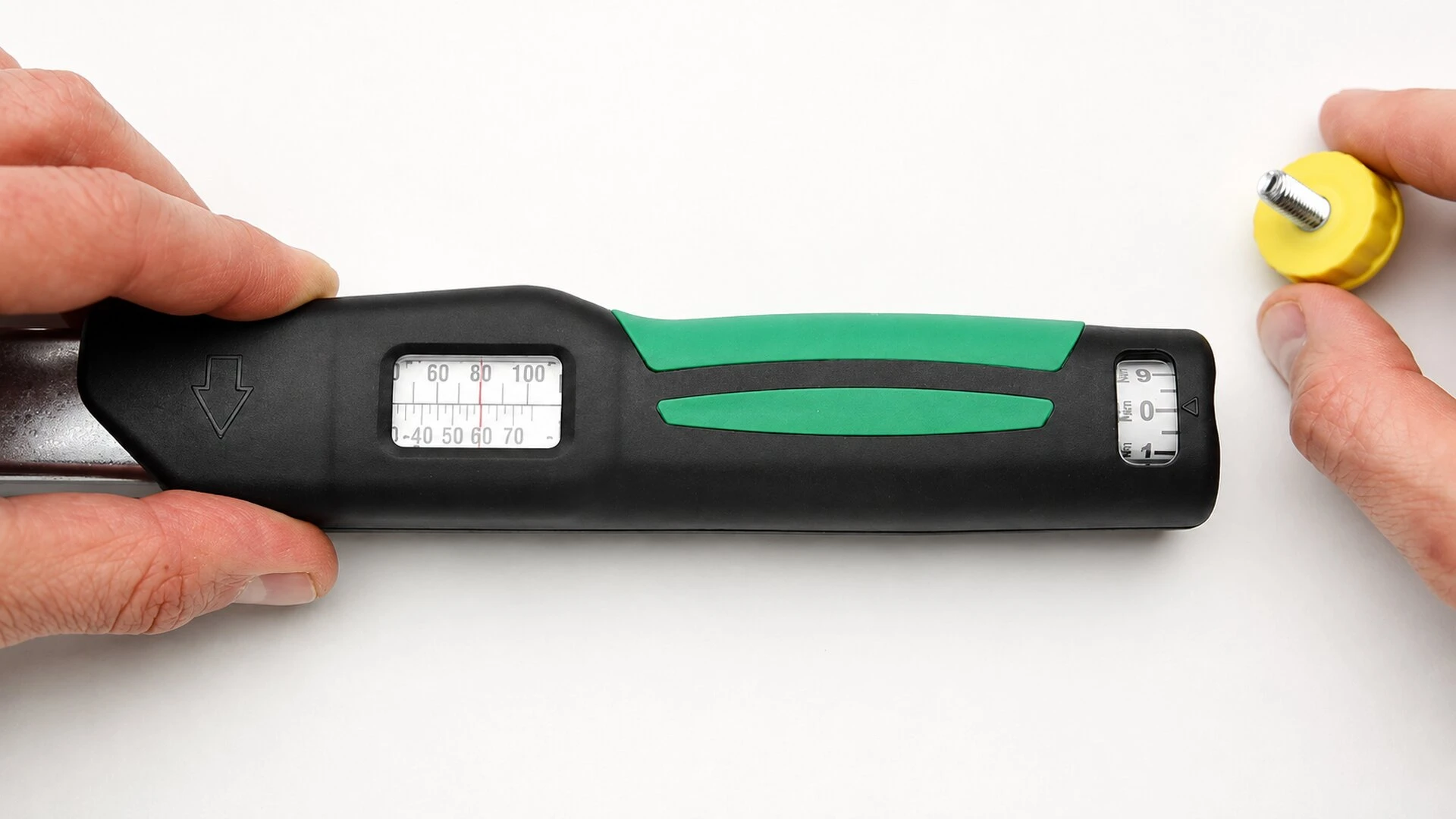

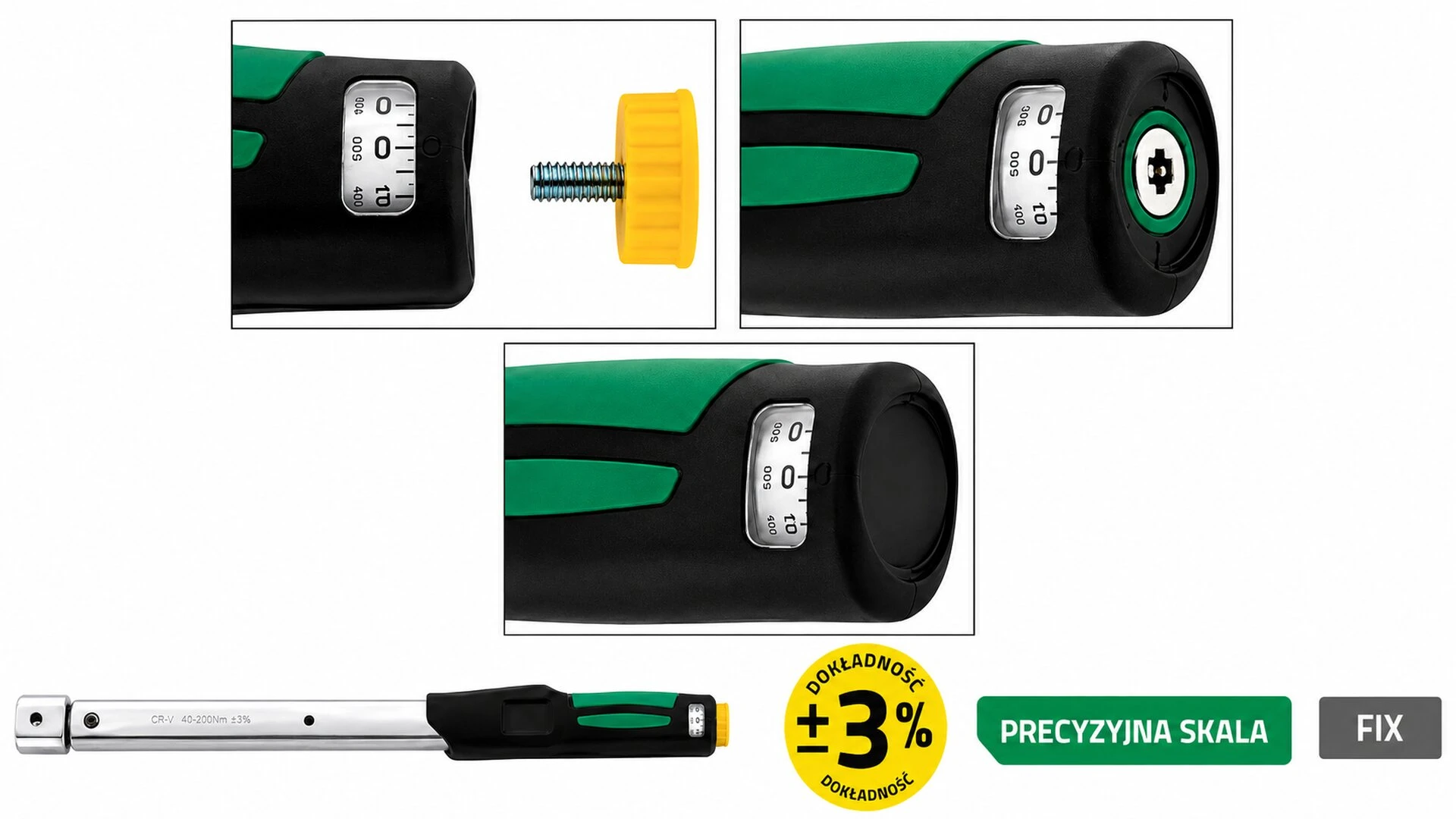

Value Lock (Tamper Resistant)

The target torque can be quickly set using the adjustment knob. The knob can then be removed to prevent further adjustments. The included locking screw and self-adhesive seal provide additional protection against tampering.

Factory Calibration Certificate (ISO Calibration)

Our torque tools, transducers, and control devices are supplied with a factory calibration certificate according to the DIN EN ISO 6789-2:2017 standard and based on DKD-R 10-8, ensuring traceability of measuring devices.

ISO Calibration Certificate guarantees that the device has undergone rigorous testing in controlled conditions, ensuring high quality and measurement accuracy. This provides the user with confidence that the tool will function in accordance with ISO and other international standards. All measurements are certified by the relevant institutions, increasing the reliability and credibility of the devices in a professional work environment.

Low Wear Flexible Rod System

The torque wrench is equipped with a wear-resistant release system with a bending beam. Unlike traditional torque wrenches with spring-loaded screws, the flexible rod is not pre-stressed when unloaded, meaning the “spring” does not need to be set to “0” after use.

QuickRelease

The QuickRelease safety lock prevents the accidental loss of inserted tools. They are securely held in place, and with a press of a button, they can be quickly released, allowing for fast tool changes.

2-Component Handle

Our 2-component handle is non-slip and ergonomically shaped. It is resistant to oils, greases, fuels, brake fluids, and Skydrol. The arrow on the lever indicates the direction of action.

Features

• Release mechanism
• No zeroing required; the measuring mechanism is only stressed during tightening
• Socket for attaching interchangeable tips
• QuickRelease snap mechanism
• Quick and precise adjustment using the QuickSelect knob
• Double "stop" signal
• Clear and highly readable dual scale with color differentiation for units: N·m/ft·lb or ft·lb/in·lb
• Operation possible in the counterclockwise direction by rotating the insert tip
• Further loading of the wrench "after the click" or overloading in the reverse direction, e.g., to loosen a corroded connection – does not affect the release mechanism, preventing damage
• 2-component handle with ergonomically designed green soft component (resistant to oils, greases, fuels, brake fluids, and Skydrol)
• Recommended calibration using the perfectControl No. 7794 or calibration station No. 7706. Adjustment without disassembly
• DBGM Certificate
• In a solid plastic case (size 80-100 in a steel sheet cassette)
• Reading deviation ± 3%

Key Product Features

• Easy to Use - Quick external adjustment, no need to disassemble the torque wrench, with two adjustment points for maximum and minimum values.
• Clear, Precise Adjustment - Easy-to-use and readable dual scale in N·m/ft·lb enables precise and easy adjustment of the target torque for reliable and accurate application.
