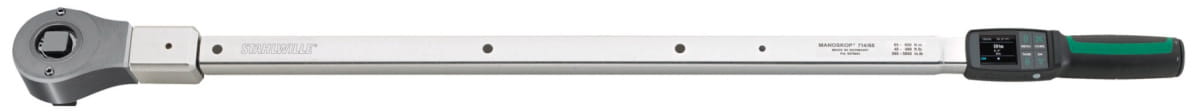

Torque MANOSKOP® 65-650N·m 714R/65 with tightening angle and reversible ratchet

MANOSKOP® 714 Torque Wrench

Our torque wrenches with moment and angle control offer a wide range of measurement modes, making them ideal for the most popular tightening methods. With four measurement modes (torque, angle of rotation, torque with variable "angle of rotation" control, and angle of rotation with variable "torque" control), the MANOSKOP® 714 allows precise and flexible tightening of bolt connections.

Measurement Modes

• Torque
• Angle of Rotation
• Torque with Variable "Angle of Rotation" Control
• Angle of Rotation with Variable "Torque" Control

Electromechanical Trigger Technology

The MANOSKOP® 714 utilizes patented electromechanical triggering technology that combines electronic measurements with a clearly felt jolt and an audible click. This mechanical response to reaching the target value ensures reliable and rapid triggering during the tightening process.

Visual and Acoustic Evaluation of the Screw Joint

The status of the screw joint can be evaluated using the color OLED display and side signaling lights. The visual evaluation system includes:

• Yellow Light – warning threshold reached.
• Green Light – within target range.
• Red Light – measurement outside tolerance range.

Documentation and Communication

The MANOSKOP® 714 allows easy documentation of recorded measurements on a PC via a USB interface or an optional Bluetooth Low Energy (5.2) module. All data is stored, allowing for further processing and monitoring of work processes. It is possible to program up to 200 screw joints in up to 25 sequences.

Calibration Certificate and ISO Standard

Factory Calibration Certificates: The torque tools, transducers, and control devices of the MANOSKOP® 714 come with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017 and based on DKD-R 10-8 to ensure traceability of the measuring equipment.

Each tool is calibrated at the factory to ensure maximum measurement precision and compliance with international standards. This makes the torque wrenches reliable and suited to high-quality requirements.

User Features

The MANOSKOP® 714 stands out with innovative features that enhance user comfort and measurement precision:

• Safe and fast tool exchange thanks to the QuickRelease lock system.
• Ergonomic 2-component handle, resistant to oils, greases, fuels, and other substances.
• Automatic extension length compensation, ensuring accuracy with varying lever lengths.
• Easy setup and configuration via keyboard and available features.
• Advanced functionality, including first peak, peak, and track modes.

Optional Accessories

Optional accessories include a lithium-ion battery (part number 7195-2) and charger (part number 7160), enhancing mobility and user convenience. The tool is supplied with SensoMaster 4 software, allowing advanced configuration, monitoring, and data analysis.

Summary

The MANOSKOP® 714 torque wrench combines modern electromechanical technology with reliable measurements, making it ideal for demanding applications, including precise tightening of screw joints. With complete calibration documentation, communication options, and wide functionality, it is an indispensable tool for any professional work.
